🚀 Power your next-gen IoT projects with lightning-fast connectivity and compact precision!

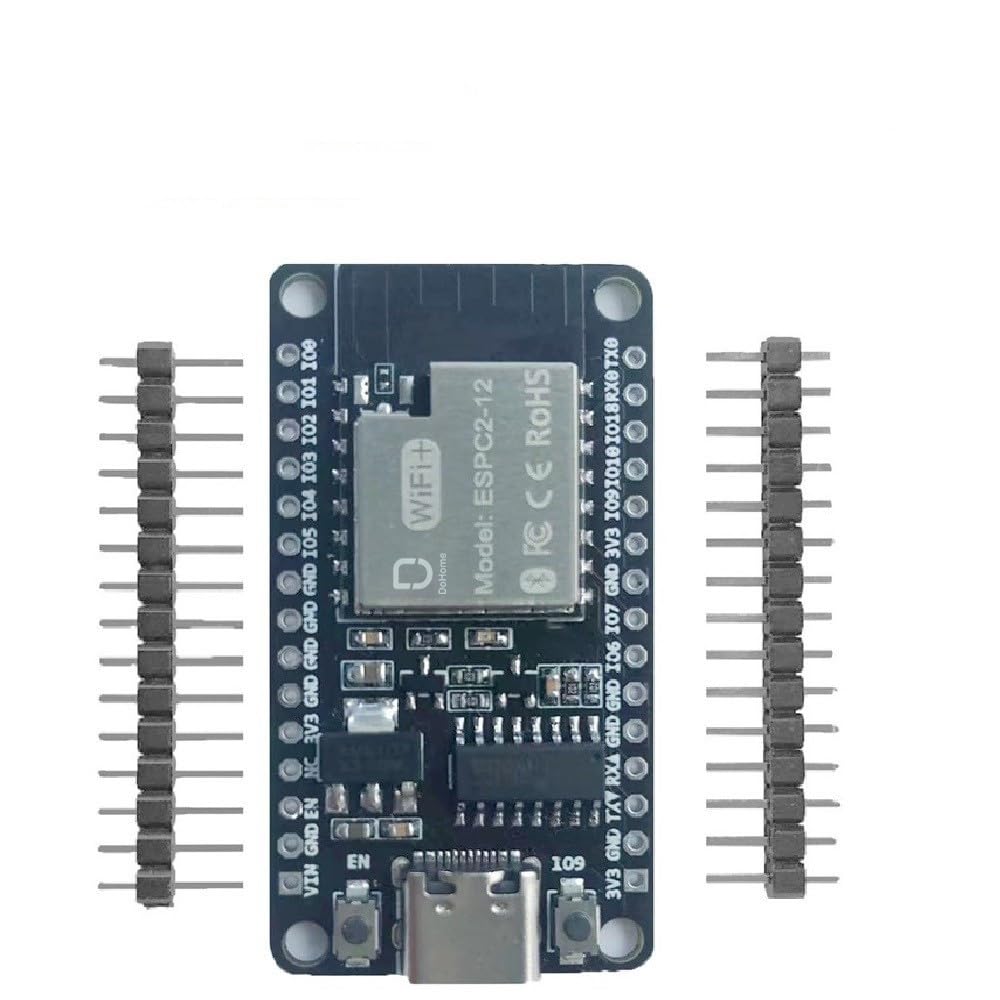

The 2 Pack ESPC2-12 ESP8684 ESP32-C2 DEVKIT Development Boards deliver high-performance WiFi 802.11n and Bluetooth connectivity with LPDDR4 RAM in a compact form factor. Designed for professional developers, these boards support up to 500mA instantaneous current, ensuring stable power delivery for demanding applications. Optimized PCB guidelines enhance RF performance, making them ideal for cutting-edge IoT and embedded system projects.
| RAM | LPDDR4 |
| Wireless Type | 802.11n, Bluetooth |
| Brand | DoHome |
| Series | ESPC2-12 |
| Operating System | Linux |
| Item Weight | 0.634 ounces |
| Product Dimensions | 0.79 x 0.39 x 0.39 inches |
| Item Dimensions LxWxH | 0.79 x 0.39 x 0.39 inches |
| Processor Brand | Espressif |
| Number of Processors | 1 |
| Manufacturer | Doit |
| ASIN | B0BMV4WSS4 |
| Country of Origin | China |
| Date First Available | December 12, 2022 |
W**W
Not supported by Arduino (yet)
There is no 'board' for this chip yet in the Arduino environment. Espressif only has (at the time of this writing) defined the AT command set for it. It might be programmable in the ESP-IDF (though, it seems you have to get a beta version).Board information:[0;32mI (60) boot: ESP-IDF v5.0-beta1-641-gc321739074-dirt 2nd stage bootloader [0m [0;32mI (60) boot: compile time 10:51:17 [0m [0;32mI (61) boot: chip revision: V100 [0m [0;32mI (67) boot.esp32c2: MMU Page Size : 32K [0m [0;32mI (74) boot.esp32c2: SPI Speed : 30MHz [0m [0;32mI (81) boot.esp32c2: SPI Mode : DIO [0m [0;32mI (89) boot.esp32c2: SPI Flash Size : 2MB [0m [0;32mI (96) boot: Enabling RNG early entropy source... [0m [0;32mI (104) boot: Partition Table: [0m [0;32mI (110) boot: ## Label Usage Type ST Offset Length [0m [0;32mI (121) boot: 0 nvs WiFi data 01 02 00009000 00004000 [0m [0;32mI (133) boot: 1 otadata OTA data 01 00 0000d000 00002000 [0m [0;32mI (145) boot: 2 phy_init RF data 01 01 0000f000 00001000 [0m [0;32mI (156) boot: 3 ota_0 OTA app 00 10 00010000 000e0000 [0m [0;32mI (168) boot: 4 ota_1 OTA app 00 11 000f0000 000e0000 [0m [0;32mI (179) boot: End of partition table [0m [0;32mI (186) esp_image: segment 0: paddr=00010020 vaddr=3c090020 size=14180h ( 82304) map [0m [0;32mI (228) esp_image: segment 1: paddr=000241a8 vaddr=3fcac540 size=02618h ( 9752) load [0m [0;32mI (231) esp_image: segment 2: paddr=000267c8 vaddr=40380000 size=01850h ( 6224) load [0m [0;32mI (239) esp_image: segment 3: paddr=00028020 vaddr=42000020 size=8af74h (569204) map [0m [0;32mI (447) esp_image: segment 4: paddr=000b2f9c vaddr=40381850 size=0acech ( 44268) load [0m [0;32mI (468) boot: Loaded app from partition at offset 0x10000 [0m [0;32mI (468) boot: Disabling RNG early entropy source... [0miKECIN Technology Co.Ltd.(Oct 22 2022 15:41:31)readysn :device Fireware : W1.KD5P7010.v1_0
