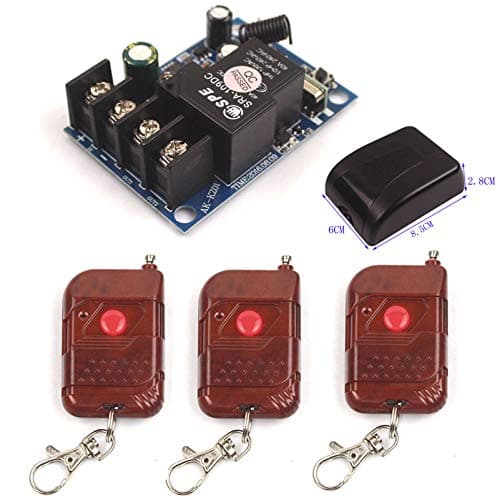

Pattern Name:3X Control 315MHz 【Specification】: Working Voltage: 12V-48V 12V 24V 36V 48V Working Frequency: 315MHz/433MHz Max Current: 40A Contact Capacity: 40A/250VAC; 40A/30VDC Output State: Momentary/Toggle/Latched adjusted freely by the Jumper on the receiver. Code: Learning code 【Working ways】: Toggle/Self-Lock: Press->On; Press again->Off press one button for one time is working/ON .press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter). Latched/Inter-Lock: Press->On; Press other button->Off press one button is working/ON, press another button is stop/OFF.(1 channel switch(receiver) need 2 buttons remote control (transmitter). Momentary/Jog: Press and hold->On; Release->Off Keep pressing one button is working /ON. loosen your finger is stop/OFF. 1 channel switch(receiver) need 1 button remote control (transmitter). The work model can free change in mode pin(self lock default set) 【Learn code and Remove Code】 1. Learn: Press the learning code, the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off. It means you learn it successfully. 2. Remove: Press the learning button about 8 seconds, the indicator turn on to off, it means the Code had been removed successfully. 【Package】: 1/2/3X Remote control transmitter (Battery included) 1X Switch Receivers (With cover)
