📏 Elevate your piping drafts—precision meets professional edge!

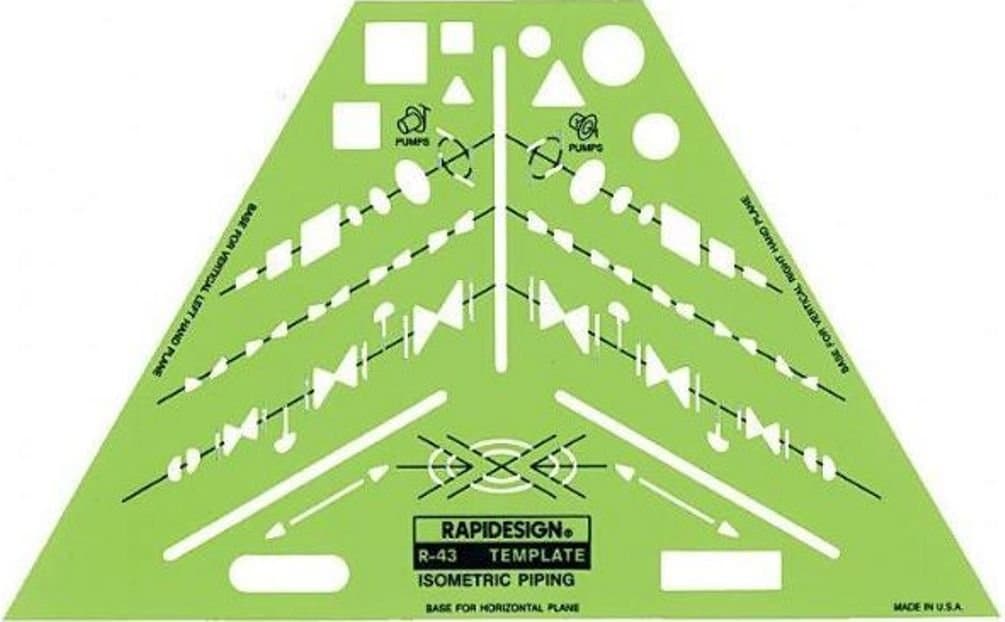

The Rapidesign Isometric Piping Template (R43) is a durable, translucent green plastic tool designed for professionals drafting complex piping systems. Featuring symbols for all major piping components and a unique triple-axis tilt for accurate isometric perspectives, this USA-made template streamlines construction drawings for refineries, gas, water, and sprinkler systems.
| Material | Plastic |
| Brand | RAPIDESIGN |
| Style | Isometric Piping |
| Product Dimensions | 6.5"L x 4.5"W |
| Manufacturer | Chartpak |
| UPC | 014173253583 |
| Global Trade Identification Number | 00014173253583 |
| Item Weight | 0.176 ounces |
| Item model number | R43 |
| Is Discontinued By Manufacturer | No |
| Material Type | Plastic |
| Number of Items | 1 |
| Manufacturer Part Number | R43 |
