Question 1

Has anyone used this card with pfsense?

Accepted Answer

I am using it now in a Pfsense server. Out of the box 5his card will not work with 2.4.5 p1. You will either need to manually integrate the new drivers in to the latest release or you can upgrade to 2.5 snapshot developmental release.

Other option is to use Opnsense, which their latest stable build should support this card out of the box.

Question 2

Why didn’t syba put heat sinks on the rtl8125 chips?  i’m seeing a lot of posts talking about throttling and erratic behavior from over heating.

Accepted Answer

a few reviews dating as far back as Aug 2021 say this card was updated and now includes a heatsink.
but here it is 2023 and still the ad shows the [old] non-heatsink model card.
I don't think the Seller is very serious about marketing this product.

it appears from one review's photos that the heatsink doesn't cover the pair of RTL8125 ethernet chips
instead, it covers the ASM1182e chip, which is a 2-to-1 PCIe 2.0 "packet switch".
(assuming that's still on the board and wasn't updated to a better suited PCIe 3.0 switch).

https://m.media-amazon.com/images/I/71DvH7EMbgL.jpg
https://m.media-amazon.com/images/I/61hj6vAgZQL.jpg
https://m.media-amazon.com/images/I/814kvobDV-L.jpg
https://www.amazon.com/gp/customer-reviews/R2PUHQHMNBQ9HC
https://www.amazon.com/gp/customer-reviews/R24JDNHXCMCFAH

.

Question 3

What pcie generation is it?

Accepted Answer

PCIE 2.0 x1 lane
you can barely make out in one of the ad photos it has an ASM1182e chip.
the ASM1182e is a 2-to-1 PCIe 2.0 "packet switch".
the pair of RTL8125 ethernet chips connect through it, to one single PCIe lane.

since the pair of 2.5GbE running concurrently "could" transfer 5Gbps
but PCIe 2.0 lane speed is 5Gbps with 8b/10b encoding, 20% overhead
the max combined ethernet transfer is only 4Gbps.
or less.

you'll see a few Reviews here from people who caught on - that it can't produce 5Gbps.

Question 4

Can the ports be aggregated in windows?  will it work with smb3?

Accepted Answer

The ports for this card can't be aggregated.

ASIN	B07XJ8CMQX
Best Sellers Rank	#71 in Internal Computer Networking Cards
Brand	IO CREST
Built-In Media	Manual, CD Driver
Color	2.5G
Compatible Devices	Desktop
Compatible Operating System Family	Linux, Windows
Customer Reviews	4.1 4.1 out of 5 stars (208)
Data Link Protocol	IEEE 802.3
Data Transfer Rate	2.5 gigabits_per_second
Global Trade Identification Number	00810154018697
Hardware Interface	PCI, PCI Express x1
Item Dimensions L x W x H	4.2"L x 0.5"W x 5.5"H
Item Type Name	Dual 2.5 Gigabit Ethernet PCI-E Network Expansion Card RJ45 LAN Adapter Low Profile Bracket SD-PEX24066
Item Weight	12.8 ounces
Manufacturer	Syba
Mfr Part Number	SD-PEX24066
Minimum Required Operating System Version	Mac OS 11 Big Sur, Ubuntu 20.04 Focal Fossa, Windows 10
Model Number	SD-PEX24066
Number of Items	1
Number of Packs	1
UPC	810154018697
Warranty Description	3 Year Warranty

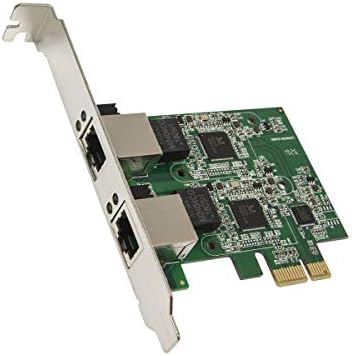

Syba Dual 2.5 Gigabit Ethernet PCI-E Network Expansion Card RJ45 LAN Adapter Low Profile Bracket SD-PEX24066
