Friday Part Throttle PB-6 Type 0-5K With MS 3 Wires PB-8 for Curtis PB 8 Type Potentiometer

Description

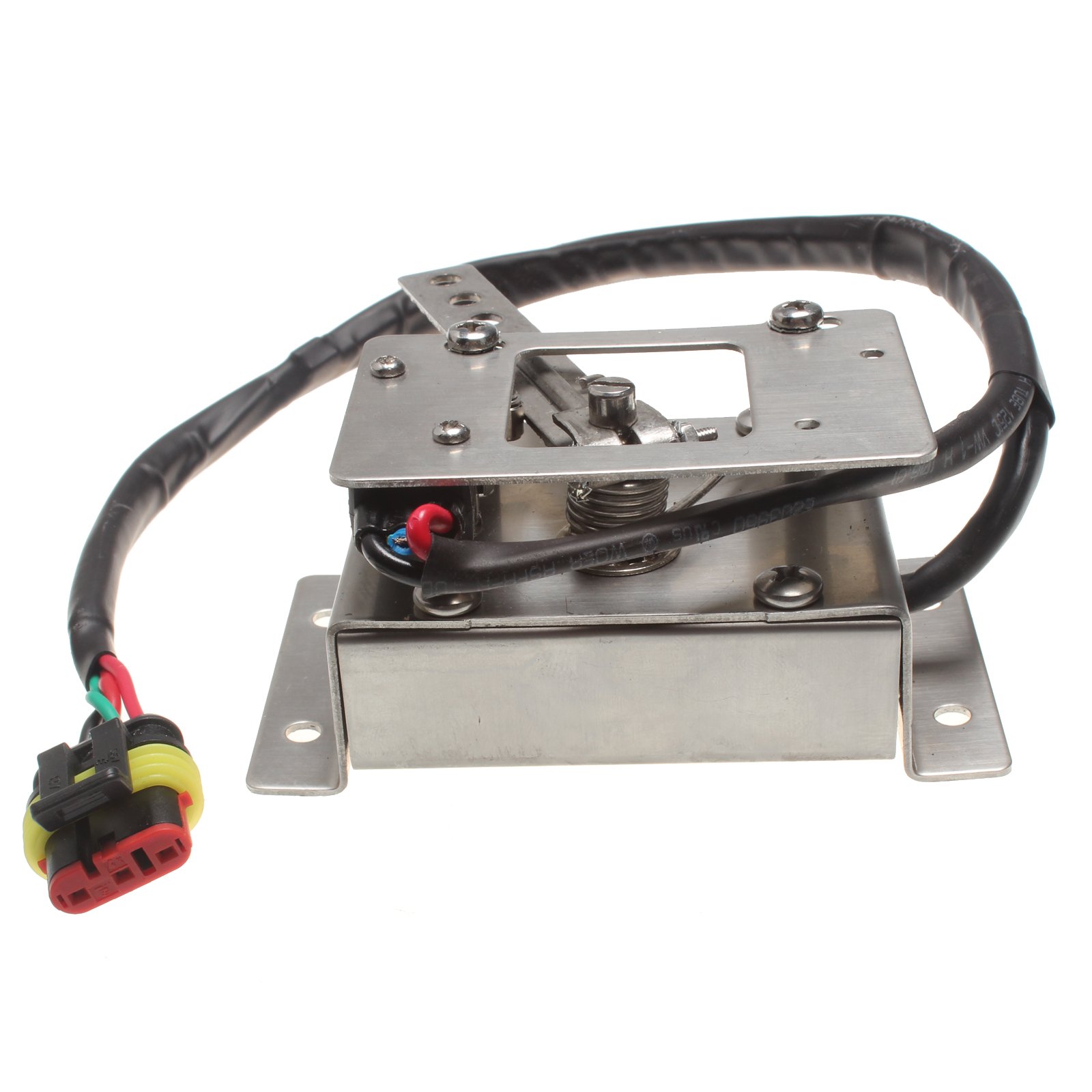

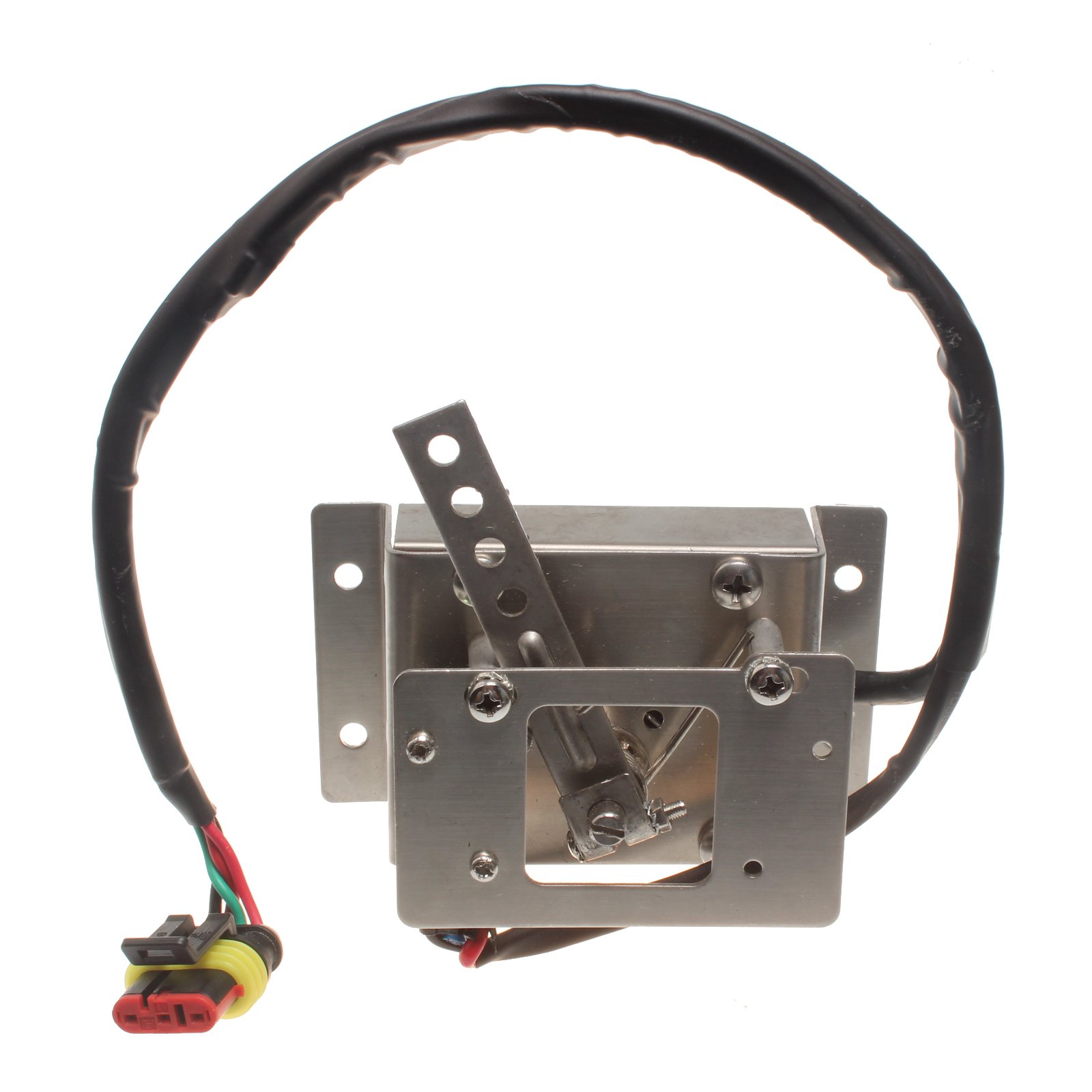

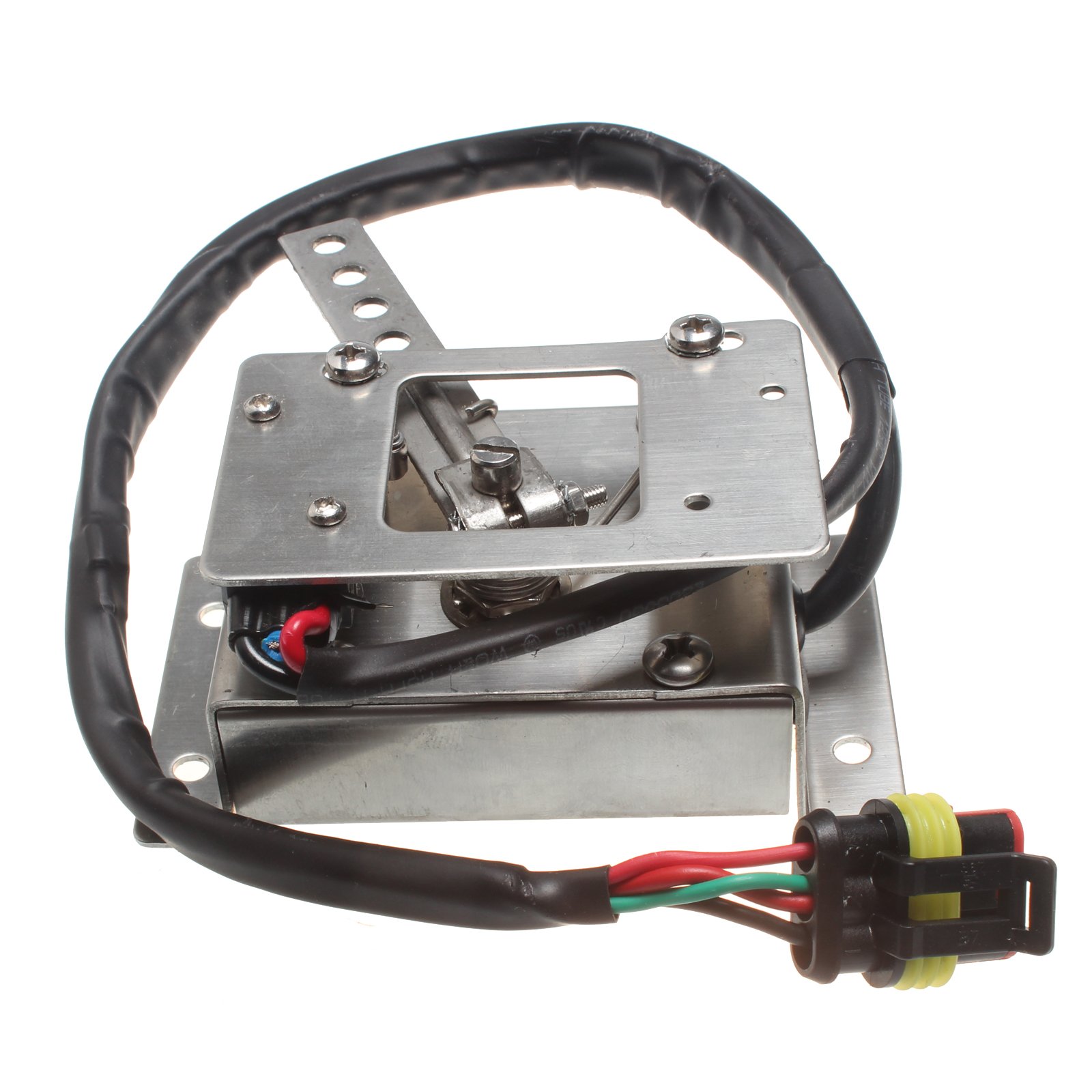

Throttle PB-6 Type 0-5K With MS 3 Wires PB-8 for Curtis PB 8 Type Potentiometer 0-5000 ohm sealed pot with 3-terminal microswitch stainless case with spring return lever. The potbox is the throttle in an EV. It tells the controller how much current is needed to be sent to the motor. The potbox's lever arm is attached to the existing accelerator cable. The box translates foot pressure into a variable resistance to let the controller know how fast you want to go. In addition there is a safety switch inside that helps prevent starting the EV with the gas pedal floored. 0-5K Resistance with Micro Switch for Contactor Control. Dimensions: 3-3/4" high, 4" long, 2-1/16" deep
