Description
- .Exquisite Workmanship: all-metal body design, the material is made of aluminum alloy and alloy steel, anodizing and coloring process, the surface is delicate and smooth, the high-end atmosphere is graded, the engine is small and the horsepower is large, with one button to start, the bracket base can let the engine It remains stable when idling, does not dump and vibrate
- .Working Principle: using methanol as fuel. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke. The four-stroke engine is divided into an intake stroke, a compression stroke, a power stroke, and an exhaust stroke.
- .Operation Method: the ignition part is connected to the corresponding heat head cap and then connected to the voltage regulator module, and finally connected to the 7.4v T plug-in battery. The fuel part is connected to the fuel tank after the fuel tank is connected to the engine, and the starting part is the 11vT plug battery. After starting the ESC, connect the simulator and the starter motor. The starter motor is included with it.

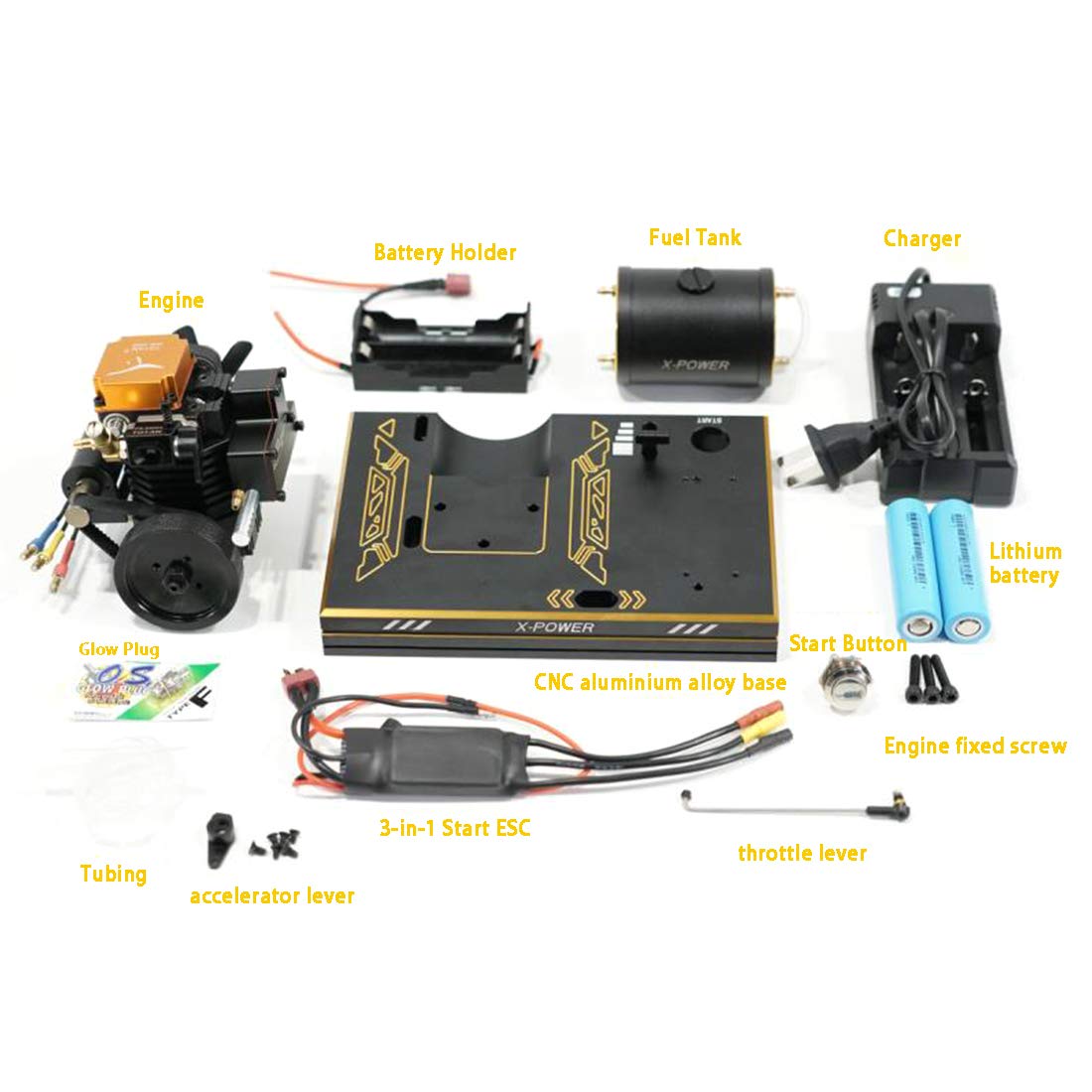

- .The Kit Includes: Engine, Base, 3-in-1 ESC, Glow Plug, Fuel Tank, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button, Battery Holder, Battery, Charger, Screw
- .Tips: This set of engines and accessories are complete, just need to prepare methanol fuel (the formula of this type of fuel is generally: 20% castor oil, nitromethane 5-30%, the rest is methanol.This product does not require high methanol fuel. It can be used at a concentration of 20-25%.The engine is suitable for installation on models such as 1:8, 1:10, 1:12 scale, ship model, model airplane, etc. This set is also suitable as a decoration, science and education, exhibition, etc.

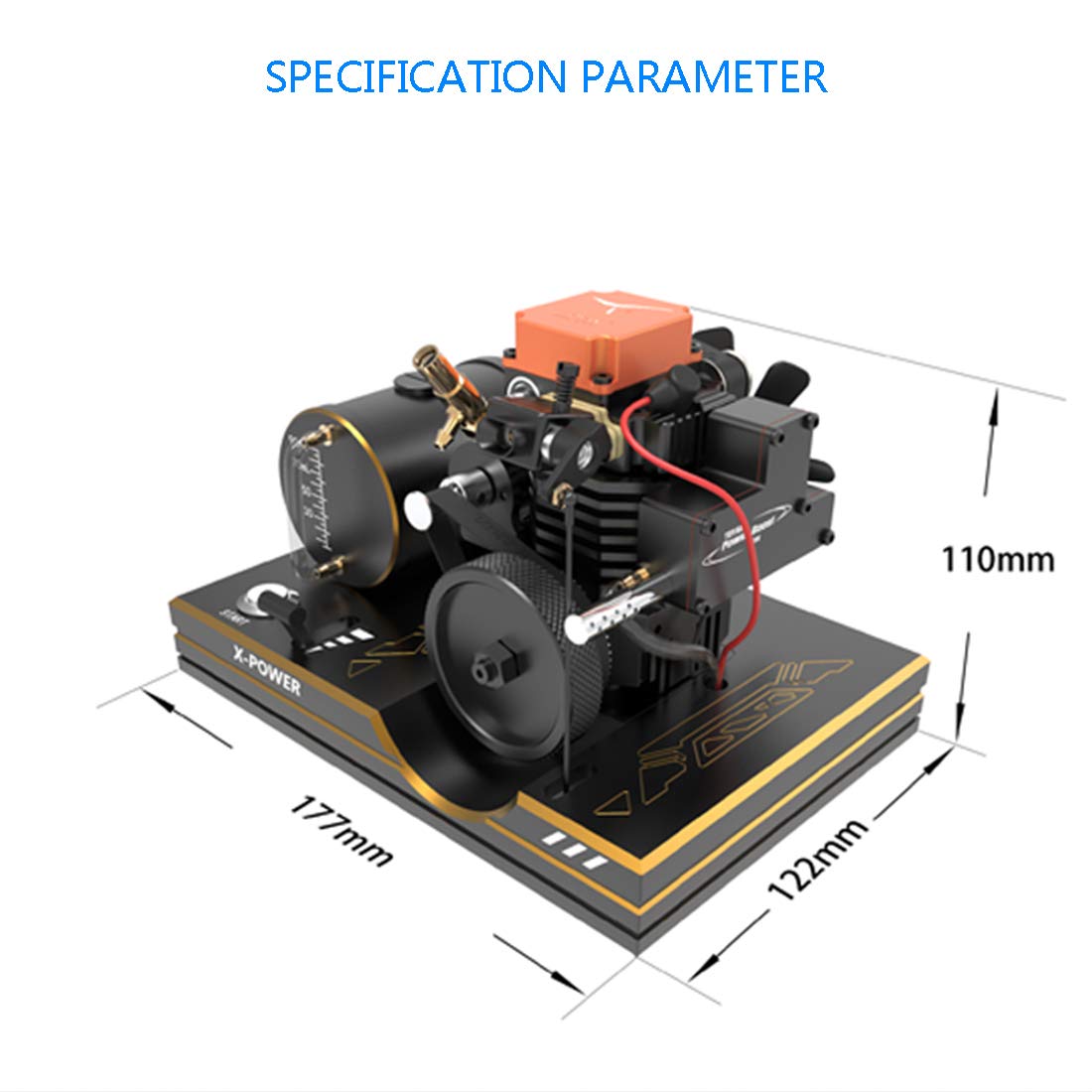

 Specifications:.Color: As Shown.Material: Aluminium Alloy + Alloy Steel.Engine length x width x height: 100.5x85.4x86.5mm.Cylinder Diameter: 17.0mm.Piston Diameter: 16.6mm.Displacement: 3.5cc.Output Power: 0.5ps horsepower.Speed: 2500-13500rpm.Machine Weight: about 1.7kg.Starting Battery: 7.4V 20C lithium battery.Battery Capacity: 2400mAh.Charging Time: 4h.Fuel Tank Capacity: 90mL.Running Time: 40min.Product Weight: 1710g.Package Dimensions: 26 x 16 x 20cm.Package Weight: 2000g.Packing: BoxPackage Content:.1Set x Methanol Engine(Engine, Base, 3-in-1 ESC, Glow Plug, Fuel Tank, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button, Battery Holder, Battery, Charger, Screw)
