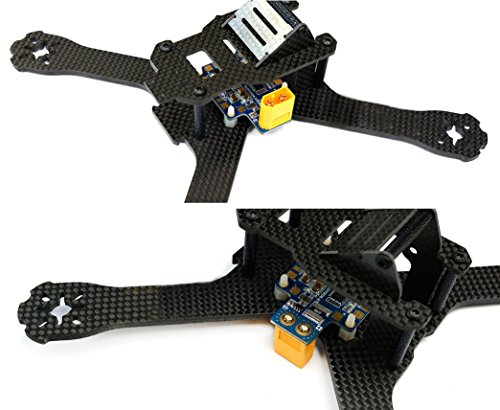

Usmile HUBOSD Power Distribution Board PDB with Plug & Play Built-in OSD(STOSD8) 5V&12V BEC Current Sensor for Naze32 SP Racing F3 Flight Controller X frame FPV Racing Quad

Description

The HUBOSD8 has been engineered to provide the highest possible performance and reliability Independent from flight control, which means no data communication with flight control It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD8. It is specially made for the mini FPV Quad. The BEC 12V is linear regulator, no LC Filter needed. Built-in STOSD8 support Plug & Play, no complicated settings needed. WHAT IS THE STOSD-8 Based on STM8 & Max7456. STOSD-8 is a new simple OSD hardware & software solution for use primarily with FPV Quad and without protocol of flight controllers. Plug & play, No complicated setting. Features: AUTODETECT PAL/NTSC LOW VOLTAGE ALARM DYNAMIC ON SCREEN INFO EXCEEDING MAH ALARM PLUG AND PLAY:You can use it with default firmware & settings. No PC connection needed if you don¡¯t want to change the settings AUTOMATIC FLIGHT TIMER FIRMWARE UPGRADABLE MIN.VOLTAGE & MAX.CURRENT RECORDER AUTO BATTERY CELLS DETECTION ONSCREEN PILOT ID For more, please visit http://www.stosd.com/ You could also download maunal from here https://www.dropbox.com/s/rc4870pbbue0ohs/PDB%20OSD.pdf?dl=0 - 2oz copper, 4-layers &1.6mm PCB. - 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 2x BEC 12V outputs. - Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads - 1x Serial port (RX, TX, G) - Dimensions: 46x36x4mm, Weight: 8.5g - Mounting holes 30.5mm square spacing Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator. Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps (Max.2.5A 10s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) Short-circuit tolerant (5 seconds/minute) Linear regulator, very low noise. LC Filter is needless. Designed for Video TX or FPV camera. Continuous current: 500mA@16V IN, 400mA@20V IN
