Build Your Own Custom Cable without the Hassle of the Welding

If you don't like soldering when make the RS232 connection, this simple DB9 solerless connector is a quick way for you to insert the wire, so much easier than melting the pins and soldering them in place.

PCB board's solder joints are named pin 1 to pin 9 (DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI), enables you to make quick connections, and to color code per wiring terminals.

Pure copper plated joints on the PCB board and DB9 connector's gold plated contacts for you to make a reliable signal connection.
The case housing is designed with folding buckle, which enables you to make a easy assembly and disassembly without tool.
The DB-9 female connector are well made and have enough space inside to make it easy to connect,and then route the wire fairly easily.

Suitable for variety of pin connections required to use serial communications industrial control products, such as:
CNC Controller, motor, radio, digital camera, laptop, set-top box, barcode machine, PLC equipment , PDA, POS, MODEM, tax control panel, network serial devices, scientific instrument , etc

Use in wiring to control panels for laptops;
Connects serial devices that need conductors broken out;
Provide power and triggering to a scientific instrument ;
re-pin an Ethernet patch cable to use for a console cable;
...

Specific
DB9 solderless module (male plug)
pure copper plated joint
Pin headers: Gold plated contacts
Cable hole Dia.: 10mm/0.39″
Thickness: 20mm (Case size: 50 x 34 x 20mm)

What's Included
- 1pcs shell case
- 1pcs DB9 female terminal
- 3pcs tail pipe (protective covers)
- 2pcs short screws
- 1pcs cable clamp
- 2pcs long bolts

ASIN	B09L7HLTWC
Best Sellers Rank	#21 in Serial Adapters
Customer Reviews	4.6 4.6 out of 5 stars (135)
Date First Available	November 14, 2021
Item Weight	1.13 ounces
Item model number	DB900
Manufacturer	guangzhouditedianzikejiyouxiangongsi
Product Dimensions	5.5 x 3.2 x 0.9 inches

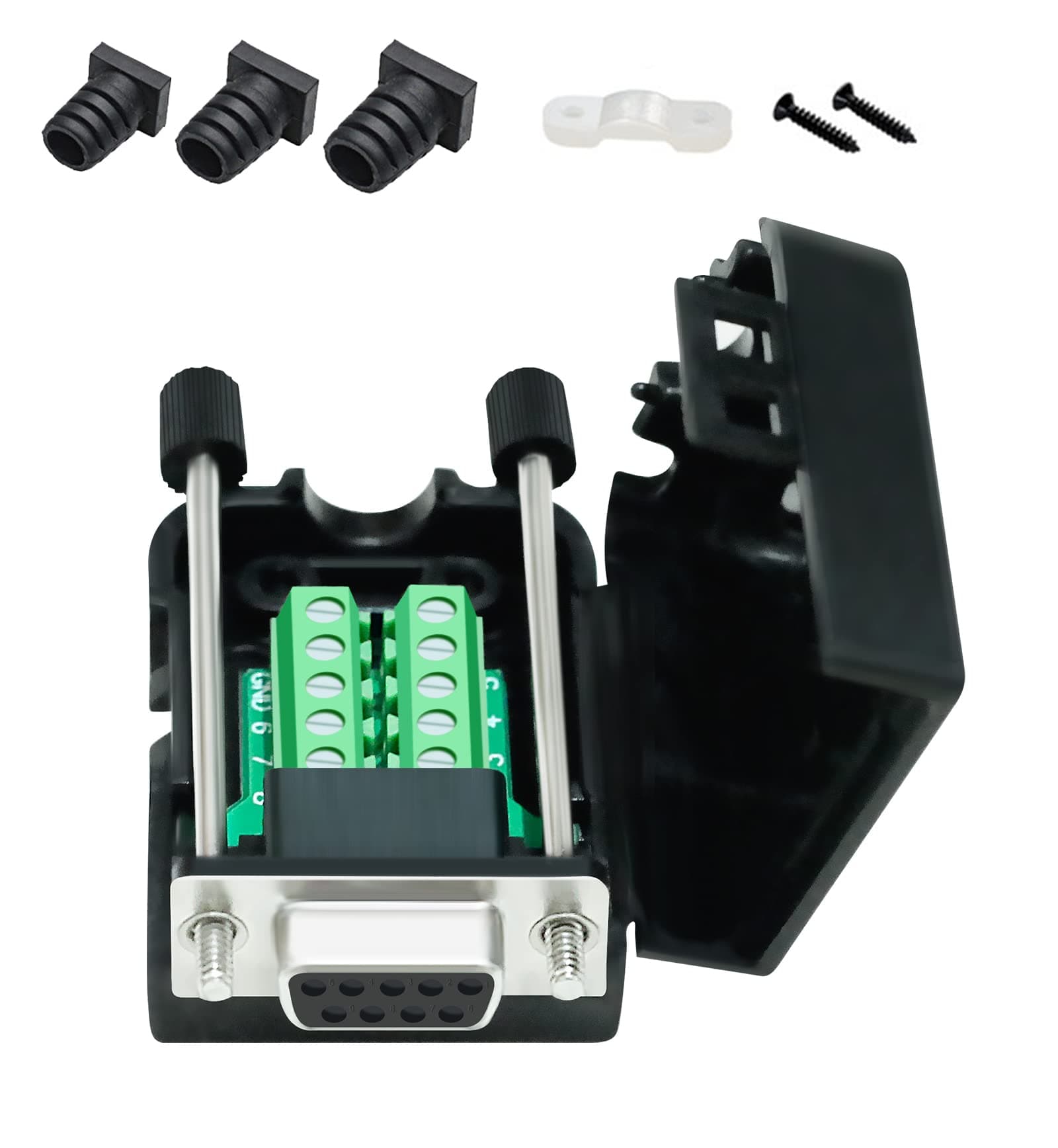

DTECH DB9 Breakout Connector DB-9 Female RS232 Serial Adapter Solderless Module Board with Screw Terminals Block, Case, Long Bolts and Tail Pipes
