Description
- About this item Occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box. Can measure the power consumption of the connected electrical device and itself has an extremely low power consumption of just 0.7 W Can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which is also useful for creating complex scenarios. Every module also acts as a repeater in order to improve the range and stability of the Z-Wave network Extremely small size and a specially designed casing mean that connecting the module inside a flush mounting box is simplicity itself. The installation process, tested and approved by professional electricians, consists of just three simple steps: Remove the switches from the box and disconnect the wires. Connect the wires to the Qubino module and insert it in the box. Fix the switches to the box. Qubino modules are “install-and-forget” products. Our products are made to last, so we only select and use top-quality electronic components. Our modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard. ›See more product details

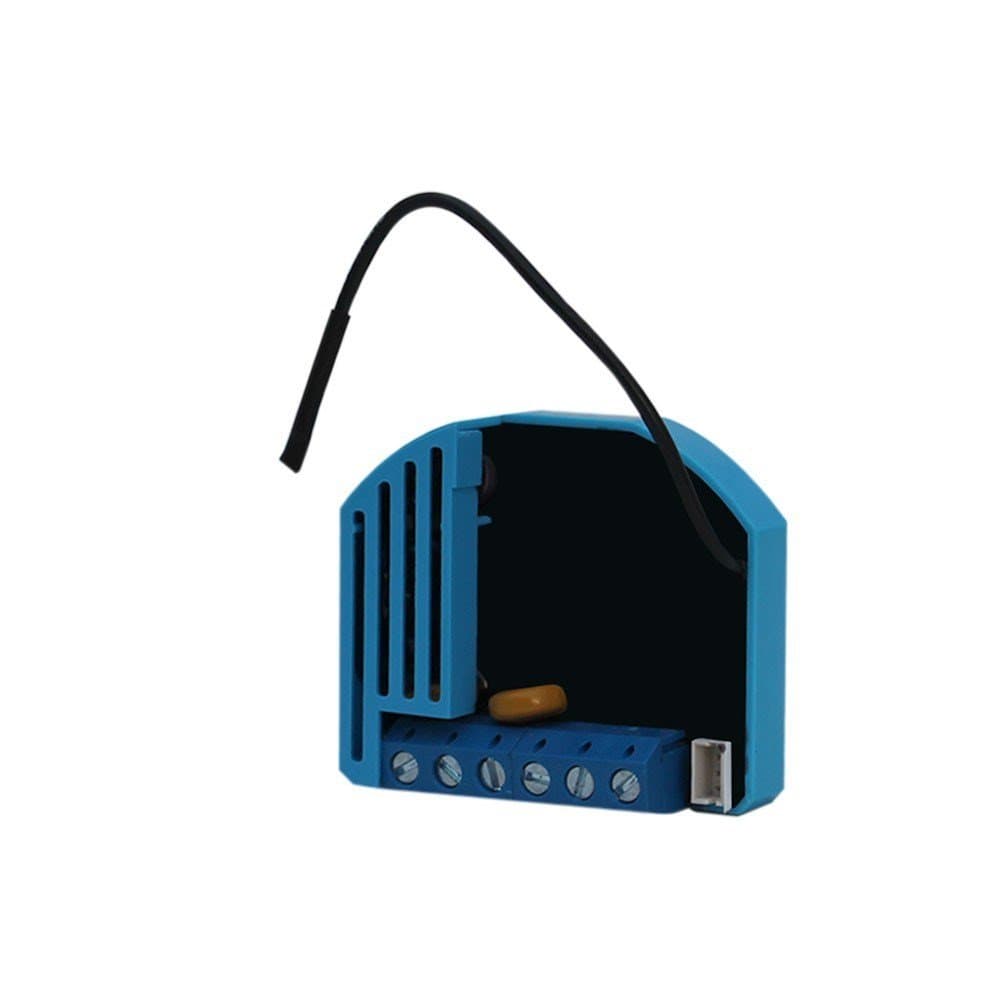

The ZMNHDD1 Dimmer allows controlling an electrical light both via Z-Wave wirelessly and locally utilizing a traditional wall switch. The device is placed in a wall box right behind the normal switch. The solution works with all switch design with or without neutral position as long as there is enough space in the wall box behind the switch. The device also supports control of low voltage halogen lamps with electronic transformer, dimmable compact fluorescent light, dimmable LED bulbs and classical incandescent lights. Additional functionalities are the optional temperature sensor, the measuring of power consumption as well as the repeater-function to improve range and stability of your Z-Wave network.
