Question 1

How long does it take to install? I do not have any trailer connector or hitch on my 2018 Transit 350.

Accepted Answer

I took me a little over 2 hours.  Start at the drivers side.  Tail light is easy to remove.  T25 torx, You'll also need to remove the plastic surrounding it only because the wire from the left side is too short for the black box to reach an accessible area.  3 torx, same size, and 2 of those push button pia's.  Then a little bit of jiggling to get it around the hinge.  I did not disconnect the backup warning sensor on that piece, I just set it on the bumper.  Run the green wire to the other side BEFORE you mount the little black box.  I had just enough room with the wires a little tight on both sides to put it back together.  The stretched wires will dictate where the little black box can be bolted.  I used 2 lath screws, one for the ground and one for the box.  You could try just one, but I wanted to insure a good ground.  I spliced the power wire on the black box wire and ran the wire through an old air hose I had laying around, just for grins.  Run it up to the front along with all the other junk going that way and I had enough wire to go to the drivers side and loop to the rearmost terminal on the power box, accessible by popping off the cover that has the red + cover.  Splice in the fuse, then the connector.  After you are all done, then install the fuse.  I recommend looking at utube for better visuals.  You do not have to take off the plastic below the taillight on the passenger side.  There is enough room to fish it up if you remove one screw and use a screwdriver to get you enough room.   This would have been so much easier if Curt didn't cheap out on the wire length for the two tail lights.  The one that etrailer sells costs more, but may be worth it if their wires are a few inches longer.  I noticed that video shows a extra foot or so of green wiring.  I haven't tested it yet as I have a tester coming in the mail and I don't want to move it off the lift until I'm sure it works.  A lift makes it easier if you're 70 and it's a hunnert degrees out.

Question 2

El cable negro qe ba ala bateria ba en el positivo o negativo

Accepted Answer

El cable negro va en el positivo

Question 3

Says it fits my 2016 transit 350hd but then says single rear wheel only. 350hd is dually. Will this work?

Accepted Answer

Probably not. The plugs that go into to turn signals may be different or some small stupid crap like that, I would call a local parts store get a reference number and come back to Amazon and buy what I need.

Question 4

What gauge is the black power wire in the kit?

Accepted Answer

the wire is not marked , but  it looks like a # 14

ASIN	B074H734CS
Best Sellers Rank	#75,076 in Automotive ( See Top 100 in Automotive ) #185 in Towing Hitch Wiring
Brand Name	CURT
Cable Type	4-Way Flat
Connector Type	4-way Flat Output
Customer Reviews	4.4 4.4 out of 5 stars (380)
Global Trade Identification Number	00612314563272
Included Components	Custom Wiring
Item Dimensions	9 x 6 x 3 inches
Item Type Name	Ford Transit-150, 250, 350, HD
Manufacturer	CURT
Material Type	Plastic
Model	56327
Part Number	56327
Recommended Uses For Product	trailer wiring
UPC	612314563272
Unit Count	1 Count
Warranty Description	1 Year Limited Manufacturer Warranty

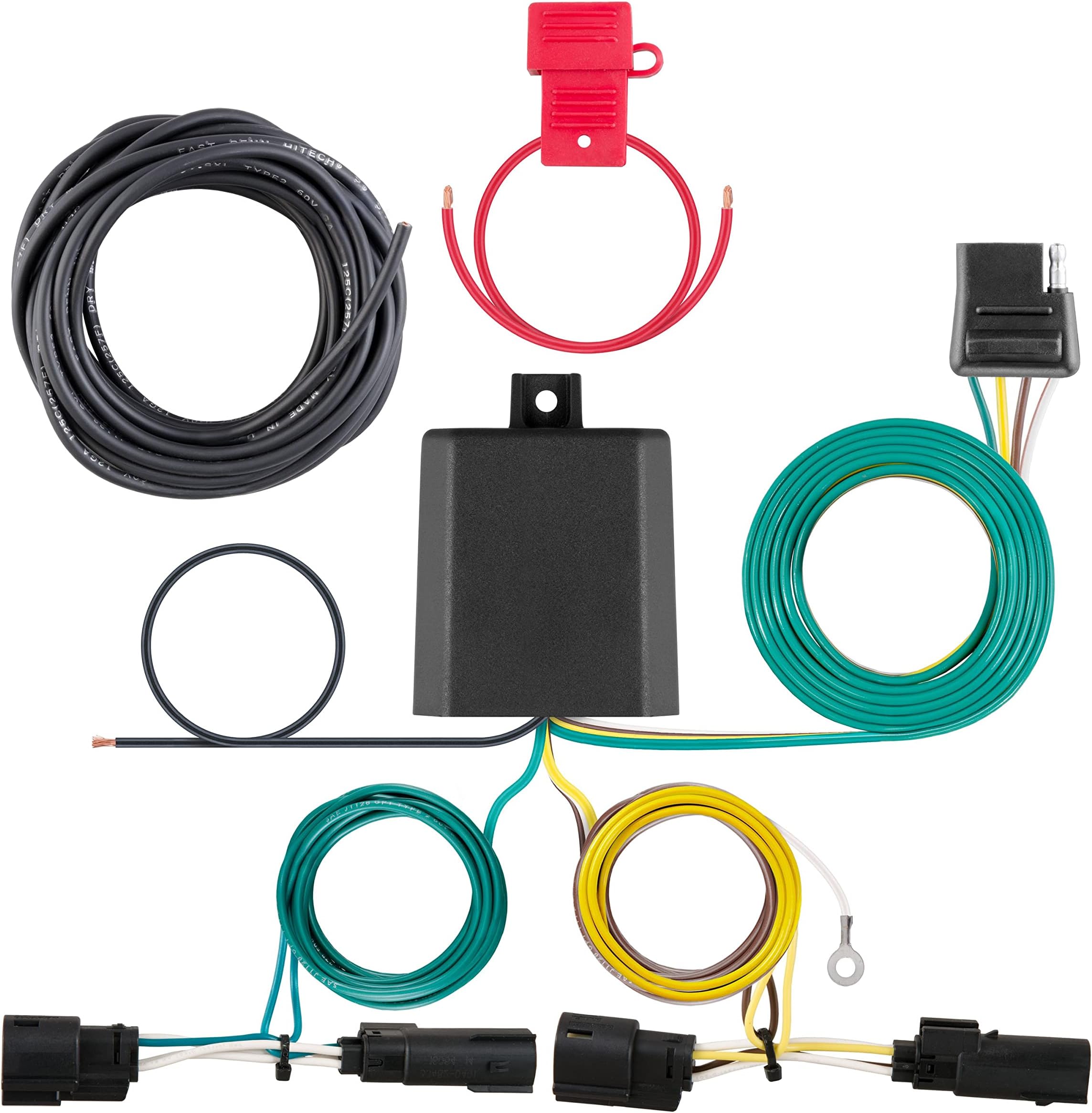

CURT 56327 Vehicle-Side Custom 4-Pin Trailer Wiring Harness for Select Ford Transit
