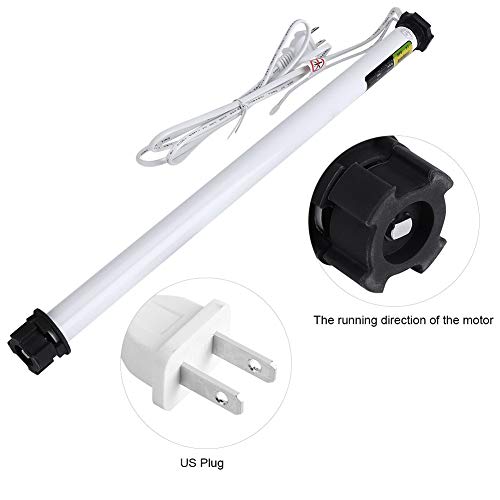

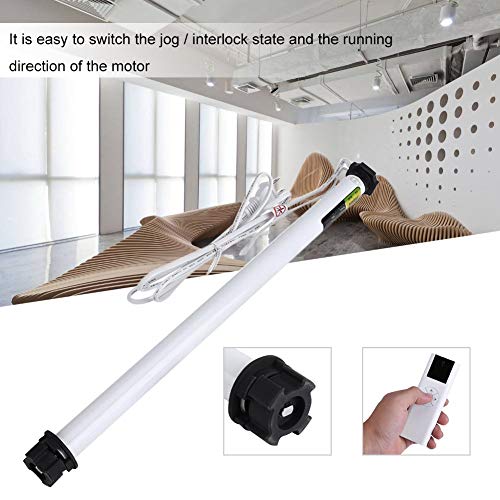

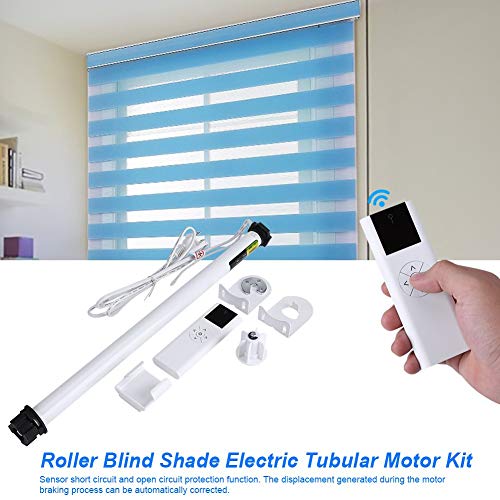

Description: Our DIY Roller Shade Motor helps you easily adjust shades on high or hard-to-reach windows - making your life simpler and easier. A basic control lets you effortlessly operate shades.Specification: Condition: 100% brand new and high quality Material: Aluminum alloy Color: White Input: AC 100-240V Plug: US plug Output: DC 24V Current: 1.2A Torque: 1Nm Rotate Speed: 30rpm Frequency: 433.92MHz Remote Control Battery Type: 2 * AAA Batteries (included in) Motor Size: Approx. 450 * 25mm / 17.71'' * 0.98'' Weight: Approx. 827gAttention: Install motor terminal on the same side as power supply. Terminal of motor with "Setting" key on the motor should face forward you. Tighten brackets until the motor is horizontal. Antenna shall be as straight as possible with position far away from metal objects. Directly contact to metal objects is prohibited, otherwise the receiving distance will be influenced seriously. Please replace the battery in time when the remote transmitter indicator does not shine or the remote-controlling distance evidently become shorter. Please take out the battery if the remote transmitter will not be used for a long time. Package Included: 1 * Electric Roller Blind Motor with Accessories 1 * Remote Transmitter
V**G
They Work But Installation Instructions Are Nonexistent
The only instructions that come with the units are for the remote control and they are not clear.After some serious 'modding' I was able to customize the motors for use on my theater room glass block windows.I used a 1" pvc conduit to attach the shade material. This meant reducing the side of the rubber covered plastic motor drive wheel to fit it into the pvc conduit. To ensure it didn't slip inside the roller I drilled a small hole in the the conduit into the drive wheel and countersunk a screw. At the opposite end the white plastic splined wheel had to be reduced in diameter to fit into the pvc conduit, as well. You'll have to do the math as to how long the roller should be for your particular window. I used vinyl drapery backing for my roller shade material and attached it to the pvc roller with thin double faced tape. My shade fabric rolls on the front side of the roller so I needed to determine how to reverse the motor from the initial setup. It took a while to determine how to do that from the remote control instructions. After programming each blind individually by simply unplugging one shade after programming it then program the second shade; then plugged the first shade back into the power outlet. Now one remote controls both shades,They work great.
