🚀 Power Your Projects with Precision & Reliability

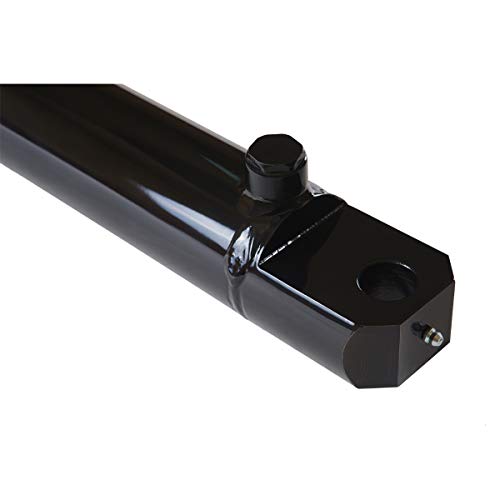

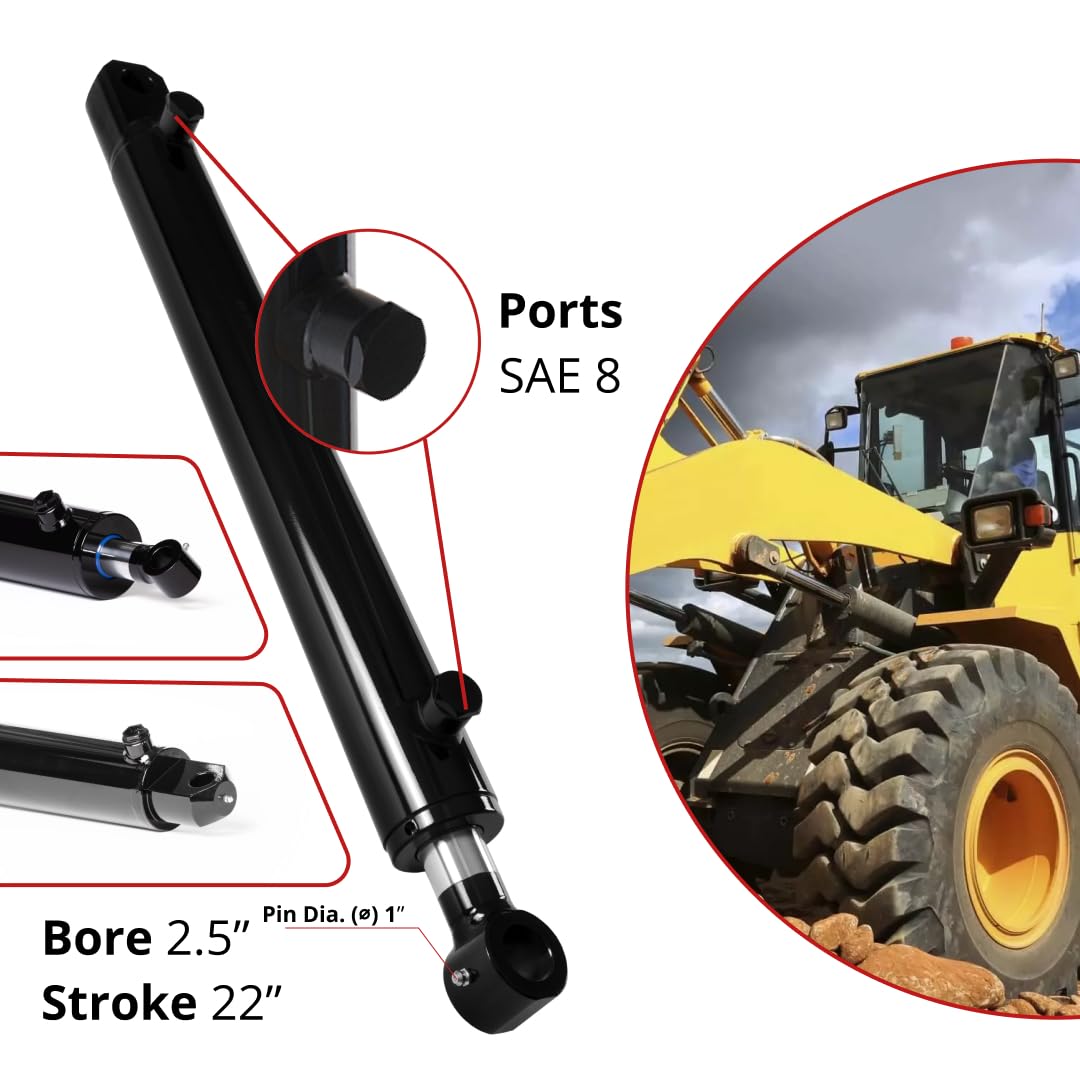

The Magister Hydraulics Double Acting Hydraulic Cylinder (2.5x22) is a heavy-duty, tang-style hydraulic cylinder featuring a 2.5" bore, 22" stroke, and 3500 PSI rated pressure. Designed for universal fit on front-end loaders, it offers robust performance with a 1.5" rod diameter and SAE 8 ports. Manufactured in Europe with carbon steel construction, it comes with a 2-year warranty, ensuring durability and reliability for industrial lifting applications.








| ASIN | B086D4192N |
| Auto Part Position | Top |
| Best Sellers Rank | #202,463 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #93 in Hydraulic Lifting Cylinders |
| Brand | Magister Hydraulics |
| Date First Available | March 25, 2020 |
| Extended Length | 53 Inches |
| Exterior Finish | Black |
| Is Discontinued By Manufacturer | No |
| Item Weight | 33 pounds |
| Item model number | WTG 2.5x22 |
| Manufacturer | Magister Hydraulics |
| Material | Carbon Steel |
| Product Dimensions | 36 x 5 x 5 inches |
| Style | Modern |
| UPC | 850016509185 |
B**Y
hydraulic cylinder
fits perfect on my kubota, had to get new lines made but all in all they work great and are 5xs cheaper then kubota stock cylinders.
M**N
Great product—will use again
These cylinders are far better than John Deere cylinders. Arrived quickly and fit perfectly with very minor adapting.
W**H
Powerful and reliable
This is on my kubota LA302 loader boom as I rotate out and rebuild the orginal (2002 purchased 932hours on machine) hydrulic pistons. Works perfectly at half the cost of kubota units. I'll continue buying from these people. Also it was quick delivery!
H**R
Tractor
Worked great
D**E
Quality ram for the price
Exactly as described. Held up to 12 hours of use on a backhoe so far. Pleased for the price.
M**K
Worked great for the application, impressed by the quality of product.
Purchased to replace original worn out cylinders on front end loader for compact tractor, working great. They seem to be very well made, enough power to easily lift a full bucket of material.
R**R
Bad cylinders
This is a very cheaply made and I have 2 cylinders that have failed with in a year. Cheap, cheap, cheap
T**P
Excellent Quality
Very well made and heavy duty. Will buy another one for the other side of my loader. The fittings are SAE pipe thread. Works very good so far. Magister Hydraulics Double Acting Hydraulic Cylinder - Tang Universal Hydraulic Cylinder 2" Bore, 12 inch Stroke Tang Style (2x12)
S**D
J’ai acheté ce cylindre hydraulique pour le système de bucket de mon mini loader homemade, et il dépasse franchement mes attentes. La course est fluide, la puissance est au rendez-vous et le double effet répond instantanément. La construction est solide, les soudures sont propres et le cylindre ne montre aucun jeu, même sous charge. L’installation s’est faite sans problème et il supporte très bien les efforts répétés. Pour un projet maison ou une application hydraulique exigeante, c’est un choix très fiable.
J**.
The rod bent after 5 mins of light work. Not a hardened rod .
