VYAIR booster pump and power supply, which will suit reverse osmosis water fed pole window cleaning filter system. Booster pumps will dramatically improve the amount of water produced from your RO system.

These pumps are available in different fittings: 1/4", 3/8", 12mm, 15mm, 1/2" push fit, 1/2" Barbed.

Do not run a pump for more than 4 hours continuously. This is to stop the pump from overheating and becoming damaged. To achieve this, we would suggest installing some form of timer, so that after 4 hours of operation the pump has a 15-30 minute break. This will enable the pump to cool down. The warranty for the pump would be null and void if no timer is used. If there is an issue with the pump we would ask for evidence of a timer being used to allow the item to be covered by the warranty.

Do not allow the pump to run dry (without an active water source) as this will damage the pump. The only time that we would suggest running the pump without an active water supply is if you have a low pressure switch wired into the pump, as this will automatically switch the pump off when the incoming water flow is turned off.

Package Contents

Pump
Power supply
Fitted power plug
Fitted electrical connections to join pump and power supply together
Pump fittings based on variation selected above
Roll of PTFE thread sealing tape

Technical Specification

Pump: 24 volt, 0.65amp
Flow rate: 0.6 litres per minute
Pump ports: 3/8" female NPT threads
Working pressure: 80 psi
Power supply: Input - 220/240v 50htz / Output - 1.2 amp, 24 volts (works with normal UK electricity supply)
This pump is not designed for 24/7 continuous operation, and should be rested for 30 minutes every 4 hours

Manufacturer	E-CHEN
Part Number	PUM-PM-0017
Package Dimensions	76.2 x 73.66 x 38.1 cm; 2 kg
Item model number	93ea4c5c-bb20-444b-b37a-e52a54cc9f5f
Size	1/4" Fitting
Colour	Black
Style	Submersible
Material	Metal
Power Source	Corded Electric
Voltage	240 Volts
Flow rate	0.6 Litres Per Minute
Item Weight	2 kg

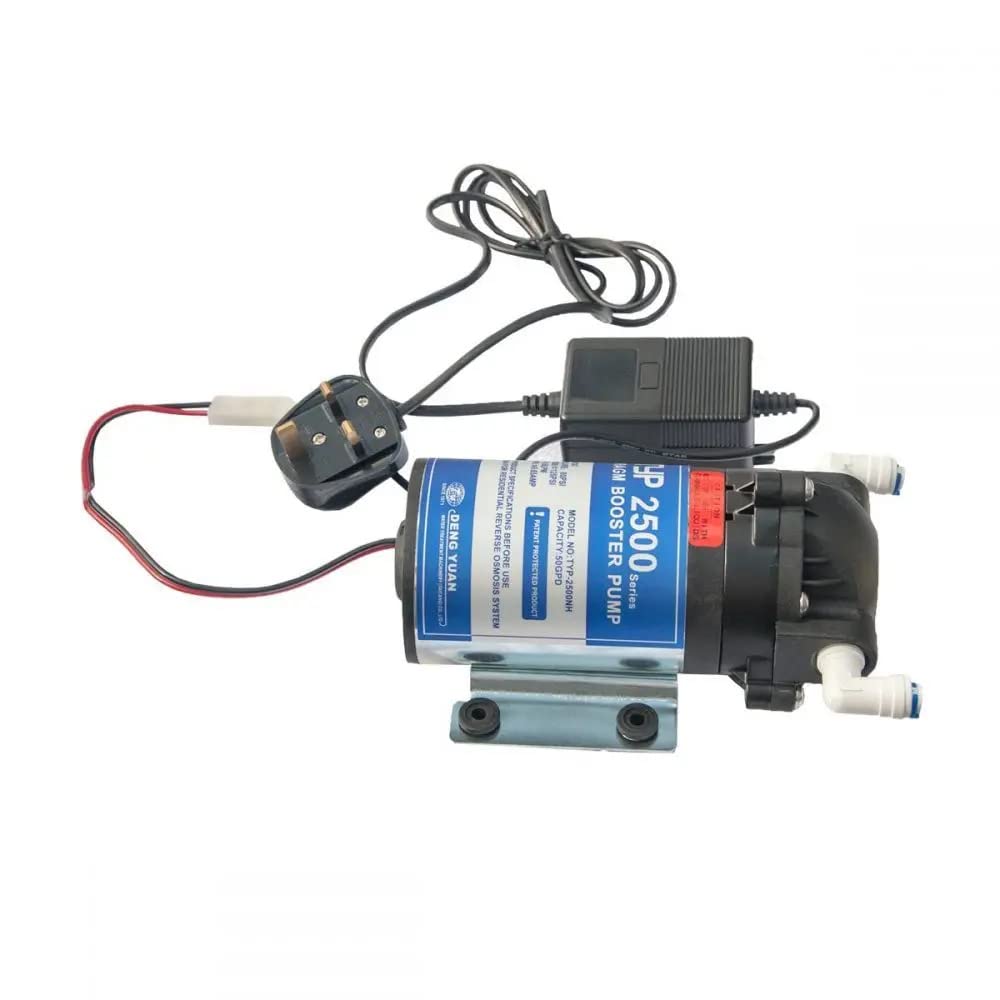

Vyair TYP-2500 Reverse Osmosis RO 50GPD (US Gallons) Booster Pump with Power Supply + 1/4" Fittings
