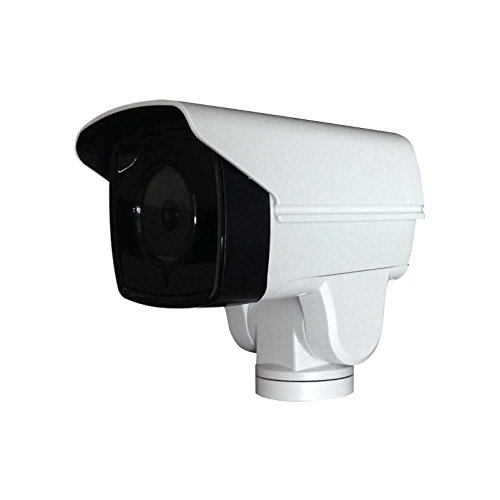

XingChuang CCTV 1080P 2MP 10x Optical Zoom 5.1-51mm IR80M IP66 ICR ONVIF MINI IP PTZ Camera+ bracket TFK Card Slot (415P-V10)

Description

2.0 MEGAPIXEL 10X OPTICAL ZOOM IR MINI PTZ CAMERA SPECIFICATION Product Model DM-SCB415IP-V10 Camera Image Sensor 1/2.8" Sony Exmor CMOS Sensor Effective Pixels 1080P(1920X1080) Electronic Shutter 1/25s ~ 1/100000s IRIS F1.6~F22 Day & Night ICR Min. Illumination 0.01lux@(F1.6,AGC ON), 0 Lux with IR Audio compression G.711-U law Image Settings AWB, AGC Adjustable Exposure Mode (Auto/Iris Priority/Shutter Priority/Manual) Sharpness, Saturation, Brightness & Contrast Adjustable WDR Range： Digital WDR Noise Reduction 2D/3D-DNR Image Orientation Mirror/Flip Privacy Zone Yes Motion Detection Yes Main Chip Ambarella A5S Video Compression H.264 Resolution 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) Bit rate 32kbps-16Mbps Encode Mode VBR/CBR Image Quality Five levels under VBR; Free adjustment under CBR Housing Lens 5.1-51mm Iris Auto Iris Water-proof IP66 Bracket Wall Bracket(optional) Dimensions 153mm×93mm×130mm（L×W×H） Weight(gross) 920g PTZ Optical Zoom 10X IR Distance 80M Pan Rotation Range 0〫~250 Tilt Rotation Range -5〫~55 Pan Speed 0.5〫~12 〫/s Tilt Speed 0.5〫~10 〫/s Preset Position 256 Connectivity Network RJ45 Power DC 12V (optional) TF Card 32G at most（Optional） Audio 1 audio input, 1 audio output(optional) Alarm 1 alarm input, 1 alarm output(optional) Network Remote Monitoring IE Browsing, CMS 3 Control Software User Access Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP ONVIF Support Ethernet 100Mbps PoE:Don't Support Power Supply DC12V/ Work Environment -35℃~60℃, 10%~90% Humidity
