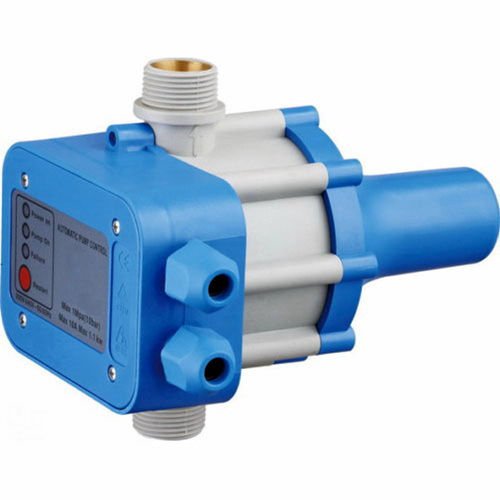

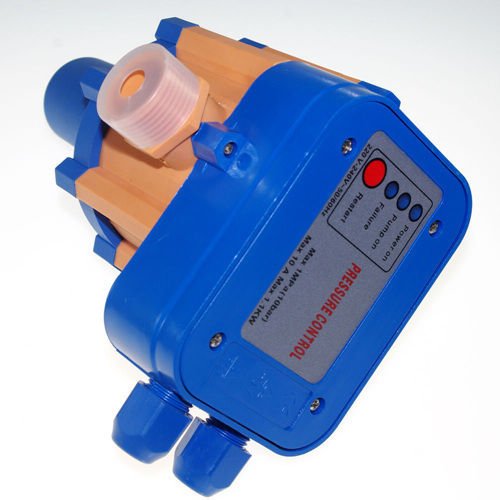

ZJchao 110V Automatic Electronic Switch Control Water Pump Pressure Controller

ZJchao 110V Automatic Electronic Switch Control Water Pump Pressure Controller

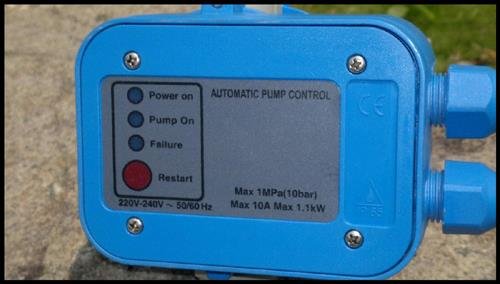

Q: advertise as a 110v but on the picture there is a sticker 220v ....is this auto volt

Both are available. Look for different listings and find one that does not have both voltages listed. I found one listing that was 110v and it is not auto voltage. I do not trust listings that have a contradiction.

Q: Could this controller work with a 1/2 hp well pump without a pressure tank?

Hi, Yes i can use with a 1 hp well pump.

Q: does the pump still let the water flow, even if the power is off?

This unit shuts the power off to the pump once wire correctly so with power off there is no water flow.

Q: I got this product few months back works fine but it turns on for a few seconds with no water running its that normal

Your question is not clear. Does it run a few seconds with water going into the input then shut off when pressure builds up because the water output is shut off? If that is the case it is working properly. My unit will turn on and provide power to the pump until it reaches the shut off pressure because the out flow is shut off. If the out flow is open the pump will continue pumping providing water under pressure. If your unit is hooked up to a system and cycles even though no valve is open there is a leak in your system somewhere allowing the pressure to drop to the point that the power is turned on.

Product ID: 8401734

Secure Transaction

Details

Brand
ZJchao
Color
Black
Material
Polypropylene
Power Source
Corded
Voltage
110 Volts
Style
Above Ground

⚡110V power input

💧Water pressure maintenance

🔄Automatic on/off control

Frequently Bought Together

ZJchao 110V Automatic Electronic Switch Control Water Pump Pressure Controller

VEVOR Deep Well Submersible Pump, 1HP 230V/60Hz, 37gpm Flow 207ft Head, with 33ft Electric Cord, 4" Stainless Steel Water Pump for Industrial, Irrigation&Home Use, IP68 Waterproof Grade

OELFFOW Smart Pump Controller with 2 Modes Digital Display, BSPP G1 Threaded Interface, Waterproof IP65, Adjustable Pressure, High Power, Easy Install, for Home, Garden, Industrial Use

Description

💧 Stay in control, effortlessly – pressure perfected!

COMPACT DURABLE - Lightweight 2.79 lbs design with robust polypropylene and PVC build
SMART WATER SAFETY - Automatically stops pump when water runs dry, protecting your system
POWERFUL PERFORMANCE - Handles up to 1.5KW and 10A current for reliable, consistent pressure
PLUG PLAY CONVENIENCE - Corded electric setup with 110V input—ready to elevate your water system
EFFORTLESS PRESSURE MASTERY - Simple push-button controls for instant, hassle-free operation

The ZJchao 110V Automatic Electronic Switch Control Water Pump Pressure Controller delivers reliable water pressure management with easy push-button operation. Featuring automatic shutoff to prevent dry running, it supports up to 1.5KW power and 10A current. Built with durable polypropylene and PVC, this lightweight, corded electric device ensures efficient, safe, and maintenance-free pump control for above-ground water systems.

Specifications

Brand	ZJchao
Color	Black
Material	Polypropylene, Polyvinyl chloride
Power Source	Corded Electric
Voltage	110 Volts
Style	Above Ground
Manufacturer	ZJchao
UPC	520041526135
Part Number	zjchao1178
Item Weight	2.79 pounds
Package Dimensions	9.7 x 7.1 x 6.6 inches
Country of Origin	China
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No

Have a Question? See What Others Asked

advertise as a 110v but on the picture there is a sticker 220v ....is this auto volt

Could this controller work with a 1/2 hp well pump without a pressure tank?

does the pump still let the water flow, even if the power is off?

I got this product few months back works fine but it turns on for a few seconds with no water running its that normal

Reviews

W**L

Works

Perfect replacement for the original controller I had installed (made in Europe). They sell the same one under a different brand name locally for over $70 in the local hardware store.In a traditional system this replaces the pump pressure switch, pressure tank and low level switch. The system senses when water is needed by monitoring pressure. When a faucet is opened in the house, the pressure drops in the line and the pump will start, the pump will run continuously until the pressure builds up again (once the faucet is closed). If there is no water in the line (the storage tank is empty), the unit will detect that no pressure is being raised and will stop the pump to protect it. It will not damage your pump, I have the same pump running in this configuration for around eight years.In terms of quality and durability of this unit, time will tell.The only con I can think of is that you would spend more in electricity under this setup versus a traditional pressure tank setup since the pump runs all the time water is needed.

9.02.2017

R**K

I got this product because it stated it would work ...

I got this product because it stated it would work from 110v to 220v but what I received only states it operates at 220. I haven't used it yet as I will now have get a pair of transformers to use it.Edit: Okay I have installed and tested it and it does work at 120v

28.06.2015

M**H

Finally installed seems to work fine. It is confusingly marked both 120 volt and ...

Finally installed seems to work fine. It is confusingly marked both 120 volt and 240 volt. I installed on a 120 volt pump and it works fine. I installed on a municipal water supply to control pump boosting pressure up my hill. It is a exact copy of the control I used to get from HF.

5.09.2017

W**N

We've been using this for a couple of months, and it's great

No complaints, recommend it wholeheartedly.

22.10.2019

W**P

Do you feel lucky?

First one work for a few weeks then it doesn't shut off the pump. Got a replacement and hope it doesn't fail again.Update: 2nd one failed again after a short period of time.

13.09.2021

M**C

Ease of use

Very easy to wire up. Used on a 1100 watt pump, works great!

30.09.2015

M**L

Item never arrived!

I have been waiting 2 months and nothing has turned up. I went to the post office but no trace.

22.06.2014

R**N

Works fine. Lacks instructions for 120V connection

Works fine. Lacks instructions for 120V connection, but that isn't a problem, anyone with a basic knowledge of wiring can hook it up.

29.09.2015
